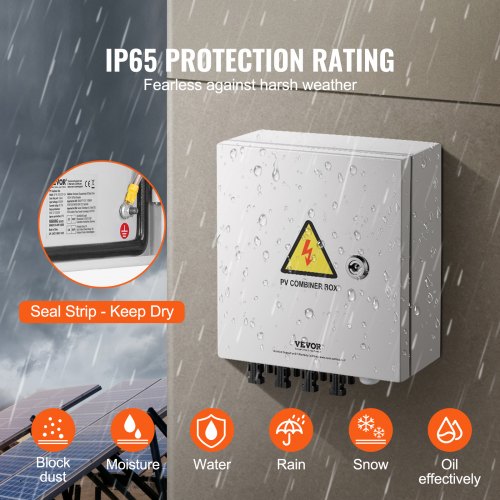

PV Combiner Box 4 String Solar Combiner Box with 15A Rated Current Fuse

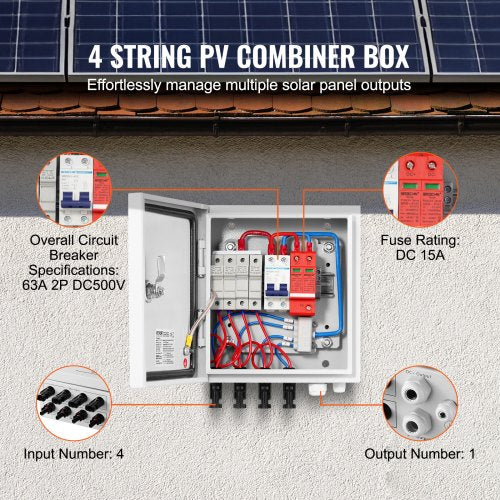

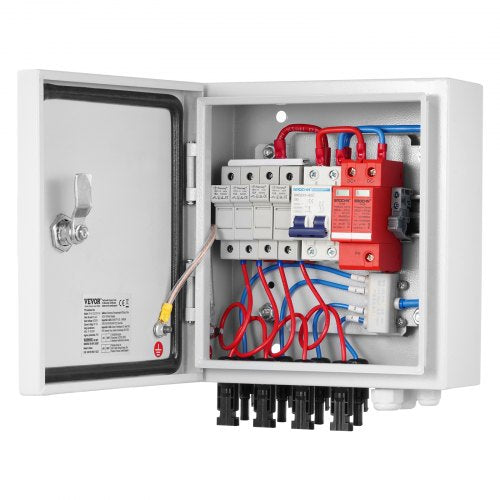

PV Combiner Box, 4 String Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector

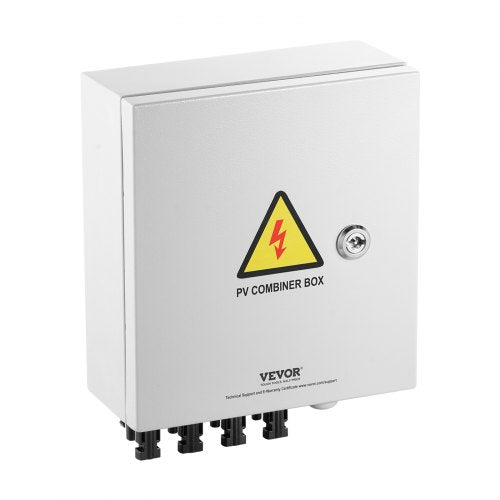

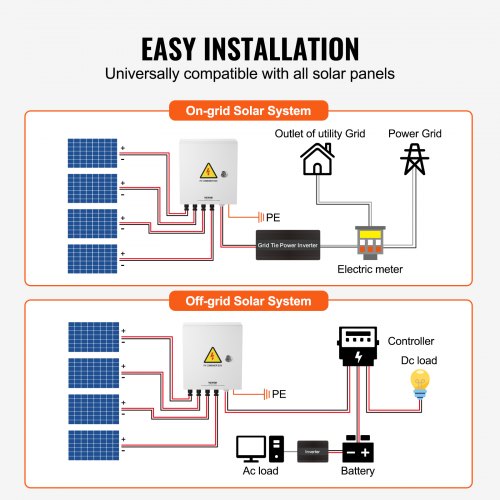

• Steel Case for On / Off Grid Solar Panel System

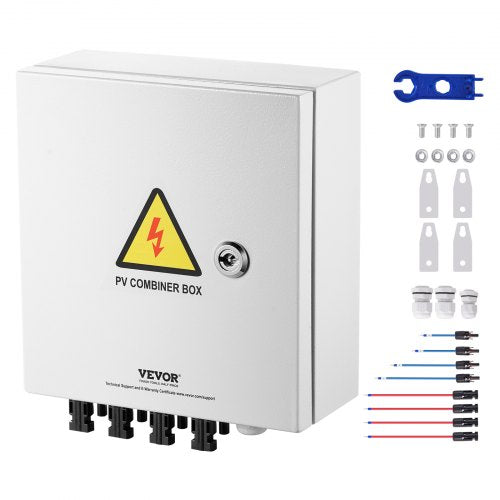

• Net Weight (including all accessories): 7.1 lbs / 3.22 kg
• Door Opening Method: Rotary Lock Opening
• Rated Operating Voltage: DC 500V

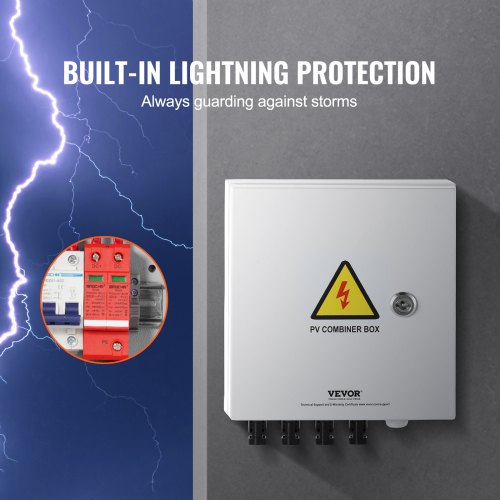

• Surge Protector: 40KA 2P DC500V
• Specification of Main Circuit Breaker: 63A 2P DC500V
• Fuse Holder Specification: DC 15A/500V
• Number of Outputs: 1
• Sealing Strip: PU Polyurethane Foam Material(Black)
• Mounting Plate: Detachable Mounting Plate(Material: Powder-Coated Cold Rolled Steel)
• Number of Inputs: 4
• Item Model Number: SP-HL-S252310-15A
• Rated Current of Fuse: DC 15A

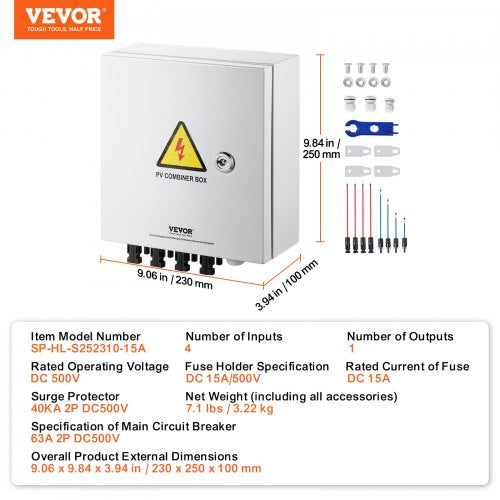

• Overall Product External Dimensions (L x W x H): 9.06 x 9.84 x 3.94 in / 230 x 250 x 100 mm

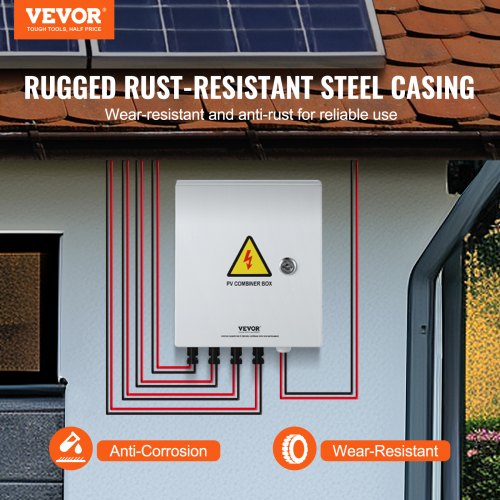

• Main Material: 0.8 mm Cold Rolled Steel Material+RAL7035 Grey-White Coating
