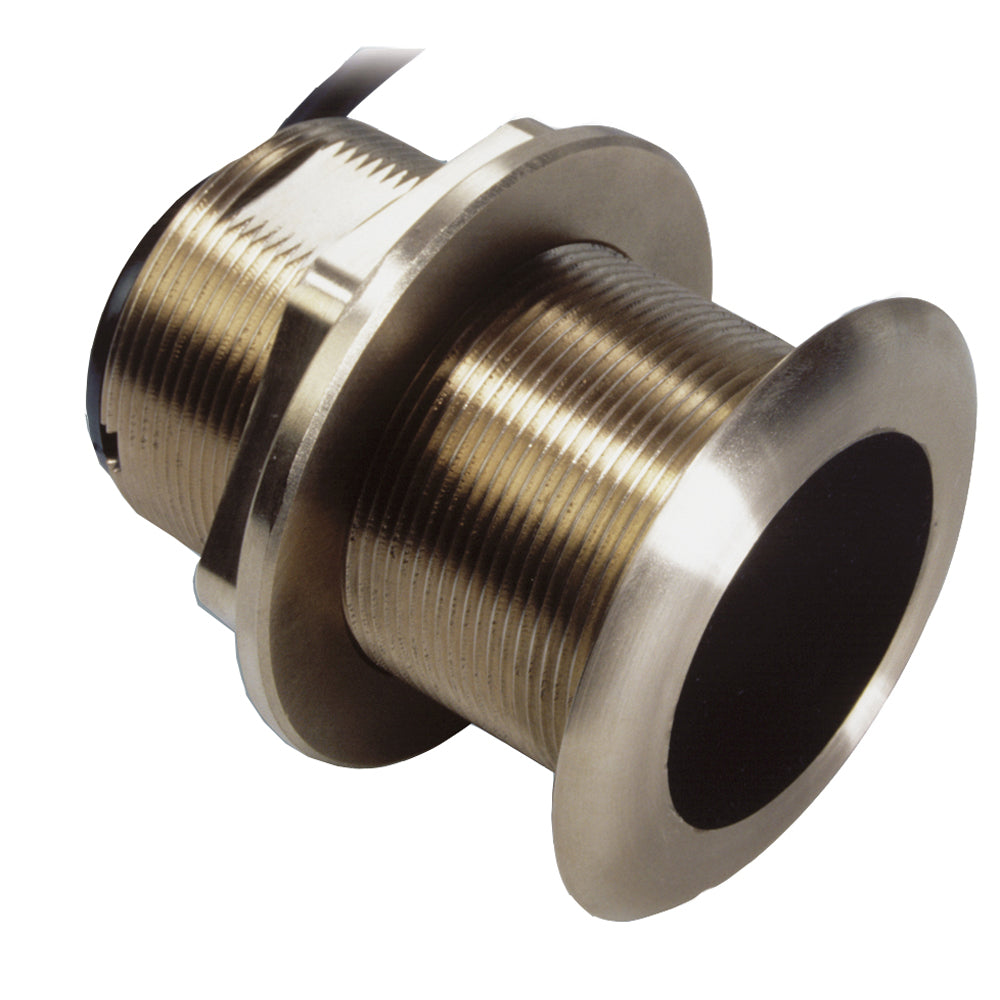

Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300 [E66086]

Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300 [E66086]

Regular price $350.99 USD
Regular price $354.99 USD Sale price $350.99 USD
Sale Sold out

B60 Tilted Element™ 12°

12° titled version is designed for 8° - 15° deadrise angles

For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300


The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

  • Depth/Temp
  • 50/200 kHz
  • 600w RMS
  • Mid-performance
  • Bronze

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Thru-Hull
  • Imagining: Standard
  • Chirp: No
  • Cable Length (Feet): 33'
  • Box Dimensions: 4"H x 8"W x 11"L WT: 5 lbs
  • UPC: 723193660867
