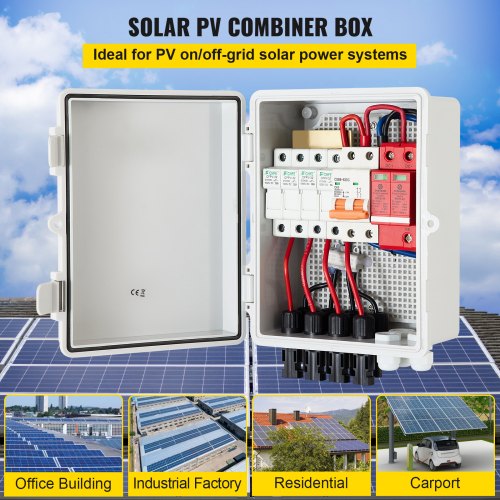

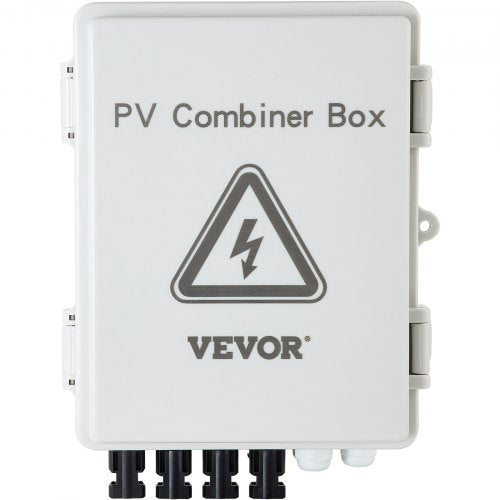

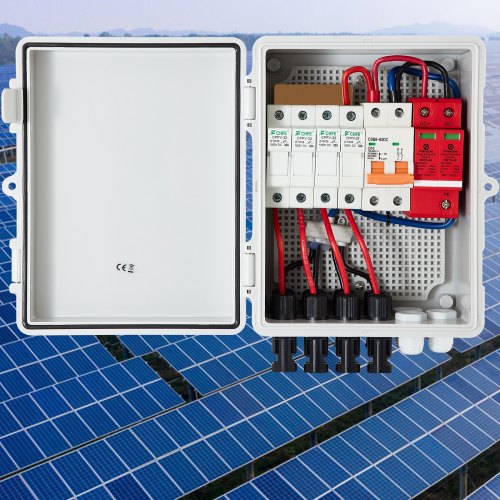

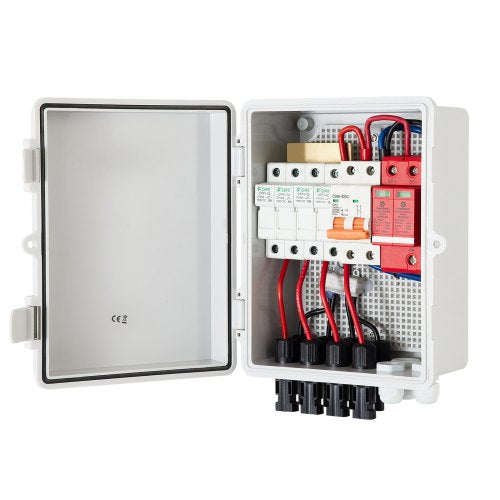

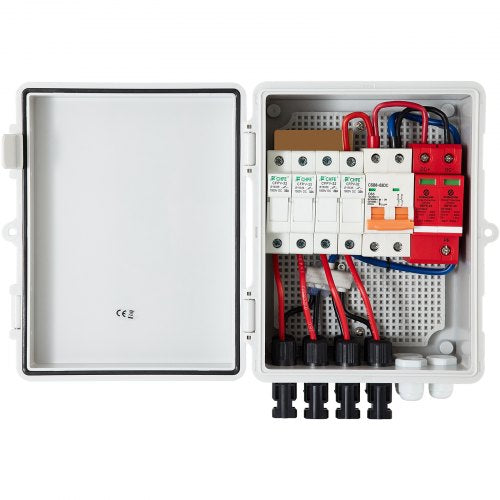

PV Combiner Box 4 String with 15A Rated Current Fuse 63A Circuit Breaker

PV Combiner Box, 4 String with 15A Rated Current Fuse, 63A Circuit Breaker Lightning Arreste Connector for On/Off Grid Solar Panel System

• No Condensation
• Cooling Method: Natural Cooling

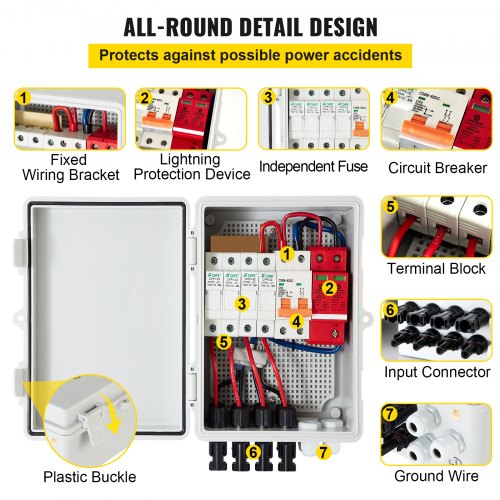

• Fuse Holder Parameter: DC1000V, 32A
• Input Current of Single PV Array: 15A
• Max Input Voltage of Single PV Array: 500V
• Air Circuit Breaker Parameter: 500V, 63A
• ON/OFF
• Operational Environment Temperature: -30?
• to 70?
• / -22?
• to 158?

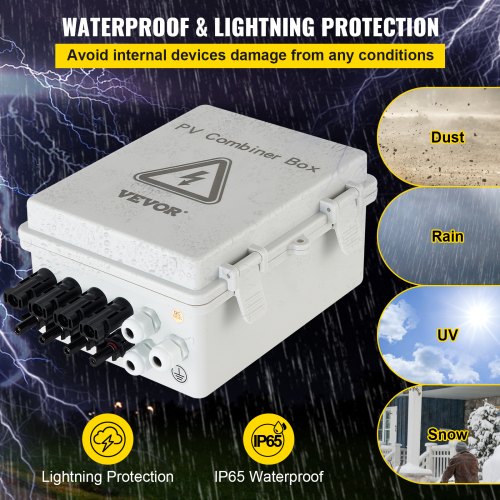

• Protection Grade: IP65

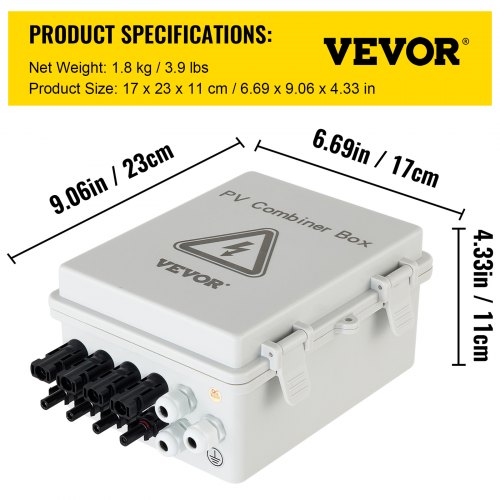

• Product Dimensions(L x W x H): 17 x 23 x 11 cm / 6.69 x 9.06 x 4.33 in
• Surge Lightning Protection: Yes
• Max Output Voltage: 500V
• SPD Indicate Light Status: Green: Normal
• Red: Triggered
• Surge Protective Device: in: 20kA
• Imax: 40kA
• Up: 1.8kV
• Model: SWHL-4
• Total Input Current of PV Array: 60A

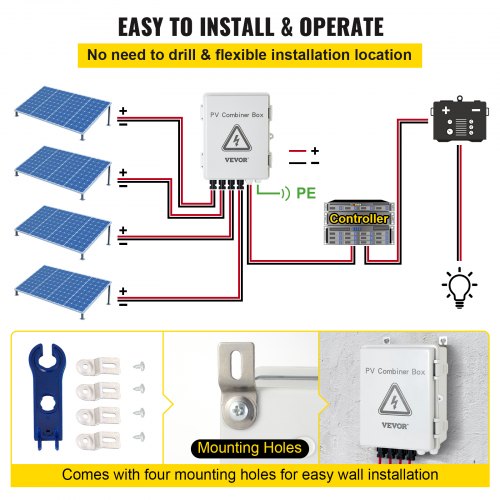

• Connection PV Array: 4
• Net Weight: 1.8 kg / 3.9 lbs
