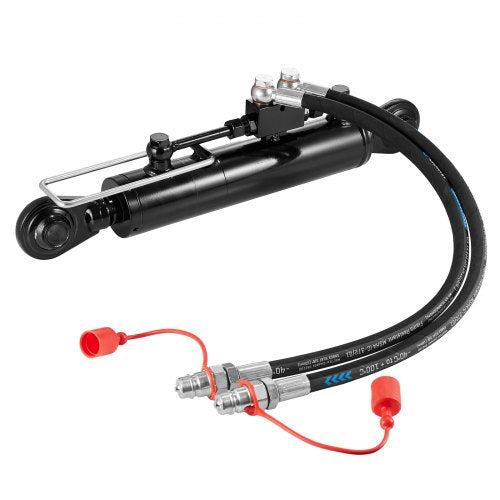

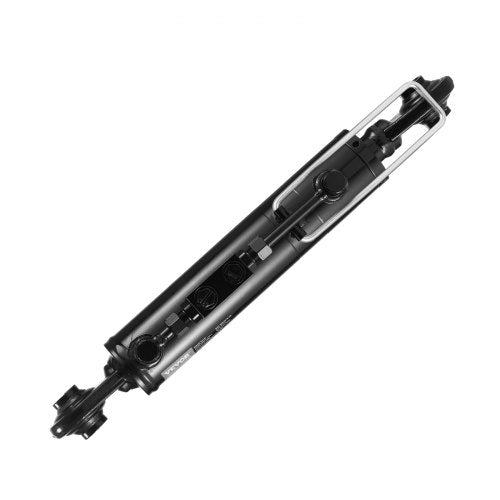

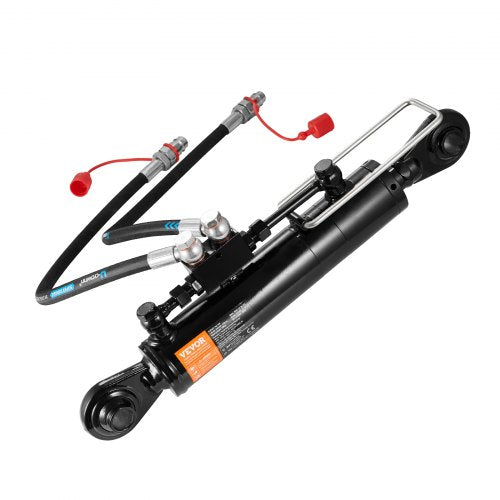

Hydraulic Top Link Cat 228516 in 19111628 in Hydraulic Cylinder

Hydraulic Top Link Cat. 2-2?8-5/16 in, 19-11/16~28 in)

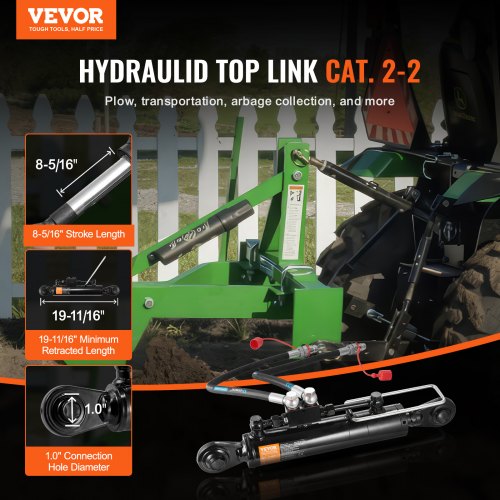

• Stroke: 8-5/16 inch/211 mm
• Piston Rod Diameter: 1.4 inch/?35 mm
• Minimum Retracted Length: 19-11/16 inch (500 mm)
• Cylinder Diameter (I.D.): 2.5 inch/?63 mm
• Color and Surface Treatment: Black Paint
• Connection Hole Width: 2.0 inch/51 mm

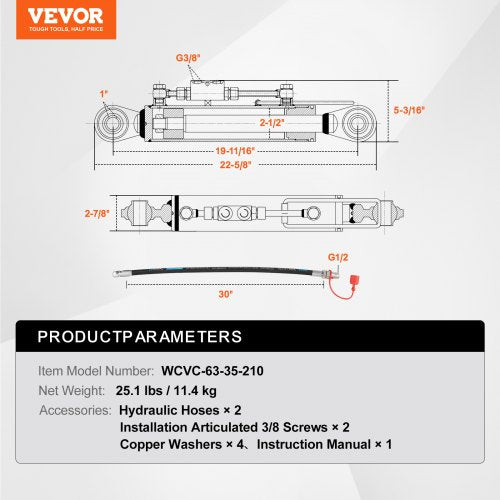

• Product Dimensions: 22.6 ×5.2 ×2.9 inch/575×132×73 mm
• Compatible Equipment: Class ?
• Tractors
• Outer Diameter:2-7/8 inch??73 mm?
• Service Life: 1-year Warranty

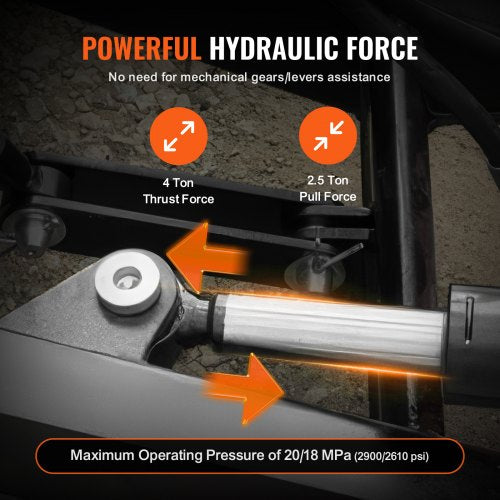

• Thrust Force: 4 Tons
• Pull Force: 2.5 Tons

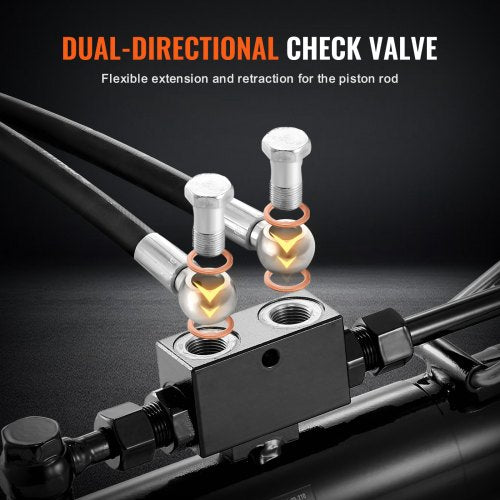

• Check Valve Inlet/Outlet Port: G3/8"
• Item Model Number: WCVC-63-35-210
• Fitting Type: G1/2
• Maximum/Rated Working Pressure: 20/16 Mpa?2900/2320psi?
• Net Weight: 25.1 lbs/11.4 kg

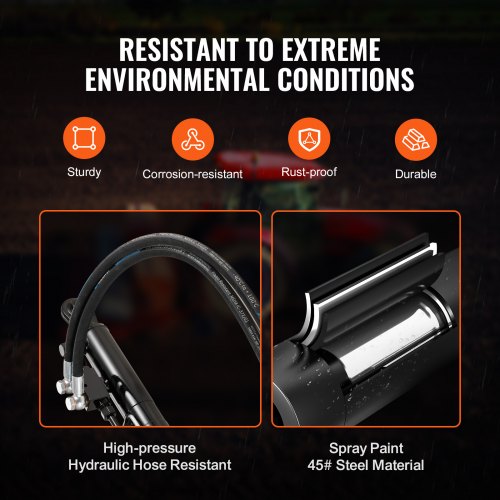

• Main Material: 45#Steel
• Connection Hole Diameter: 1.0 inch/?25.5 mm
