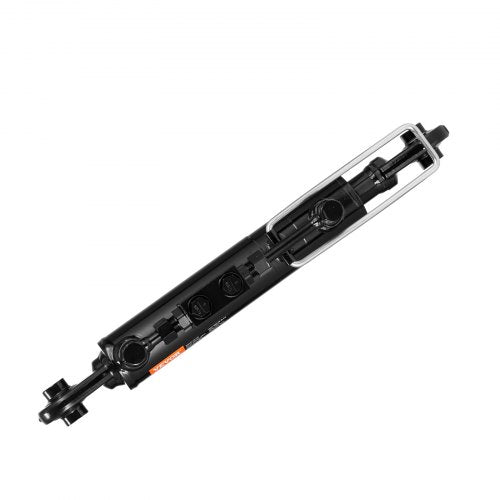

Hydraulic Top Link Cat11 814 in 18182638 in Hydraulic Cylinder

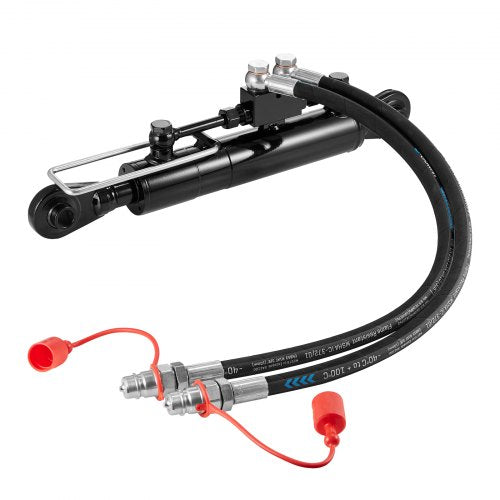

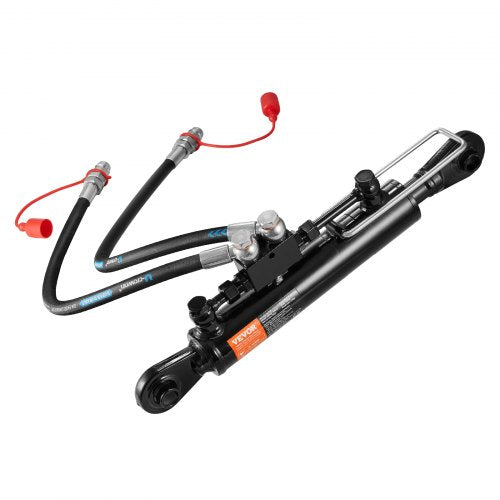

Hydraulic Top Link Cat.1-1 (8-1/4 in, 18-1/8~26-3/8 in ) Hydraulic Cylinder with 2 Hoses & G3/8" Check Valve Enhanced Push-pull Force Leak-proof Structure Durable Construction Flexible Installation Perfect Compatibility Easy Assembly Hydraulic Hose: (I.D.&L.): 0.4×30.1 inch / ?10×765 mm

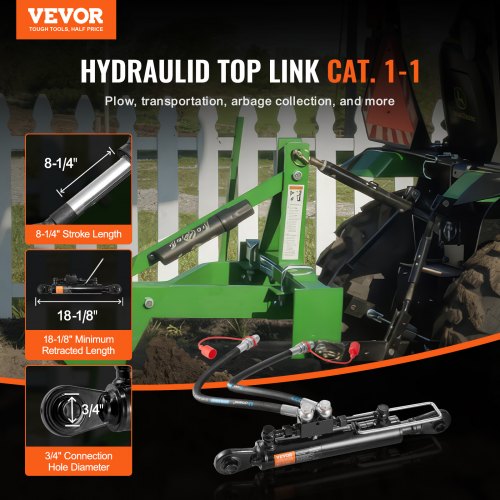

• Stroke: 8-1/4 inch/210 mm
• Piston Rod Diameter: 1.2 inch / ?30 mm

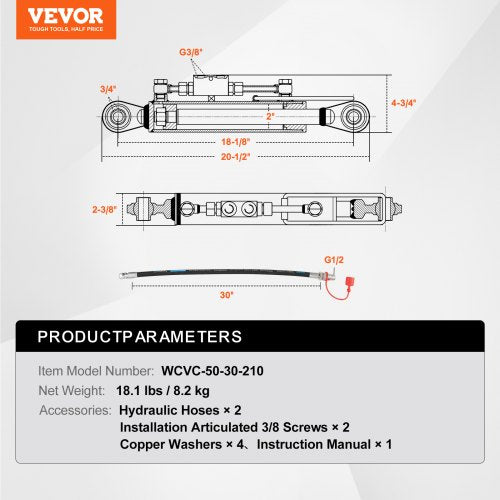

• Minimum Retracted Length: 18-1/8 inch (460 mm)
• Cylinder Diameter (I.D.): 2.0 inch / ?50 mm
• Color and Surface Treatment: Black Paint
• Connection Hole Width: 1.7 inch / 44 mm
• Product Dimensions: 20.5×4.7×2.4 inch / 520×120×60 mm
• Compatible Equipment: Class?Tractors
• Outer Diameter: 2-3/8 inch (?60 mm)
• Service Life: 1-year Warranty
• Thrust Force: 3.5 Tons
• Pull Force: 2.3 Tons

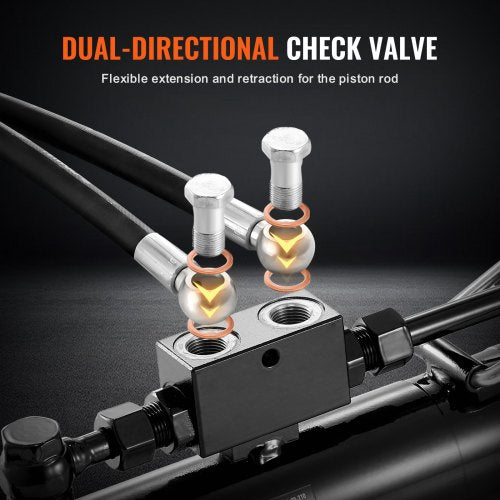

• Check Valve Inlet/Outlet Port: G3/8"

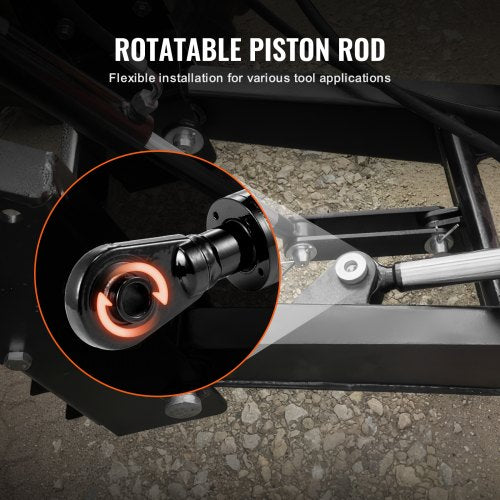

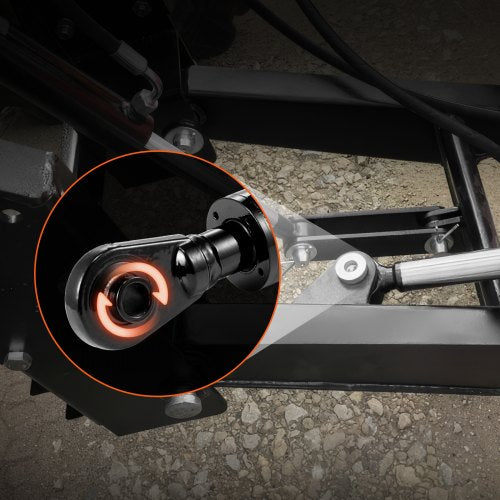

• Rotatable Piston Rod: Ball Joint Linkage Structure
• Item Model Number: WCVC-50-30-210
• Fitting Type: G1/2
• Maximum/Rated Working Pressure: 20/18 MPa (2900/2610 psi)
• Net Weight: 18.1 lbs / 8.2 kg
• Main Material: 45#
• Connection Hole Diameter: 0.8 inch / ?19.4 mm
