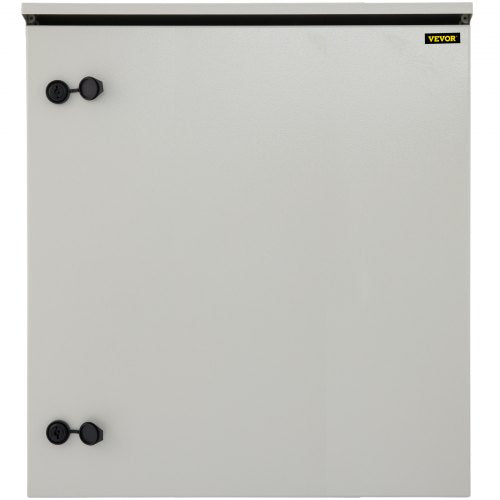

Electrical Enclosure 24 x 24 x 8 NEMA 4 Outdoor Enclosure

Electrical Enclosure, 24\'\' x 24\'\' x 8\'\' NEMA 4 Outdoor Enclosure

• IP65 Waterproof & Dustproof Cold-Rolled Carbon Steel Hinged Junction Box for Outdoor Indoor Use, with Rain H Premium Steel Material IP65 Protection Level Hinge and Lock Security Effortless Installation Thoughtful Design Extensive Application Construction: Continuously Welded
• Inner Dimensions(H x W x D): 23.5 x 23.5 x 7 in / 59.7 x 59.7 x 17.7 cm
• Color: RAL 7035 (White Gray)
• Protection Grade: IP65
• IK10
• Certification: TUV
• )
• Ambient Temperature: -40 to 122?
• / -40 to 55°C
• Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
• Ratings: NEMA Type 4

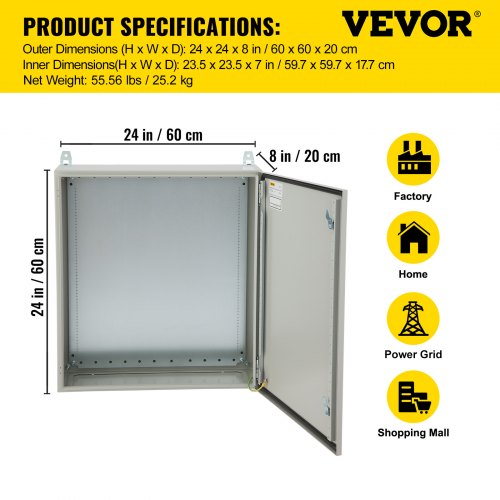

• Outer Dimensions(H x W x D): 24 x 24 x 8 in / 60 x 60 x 20 cm

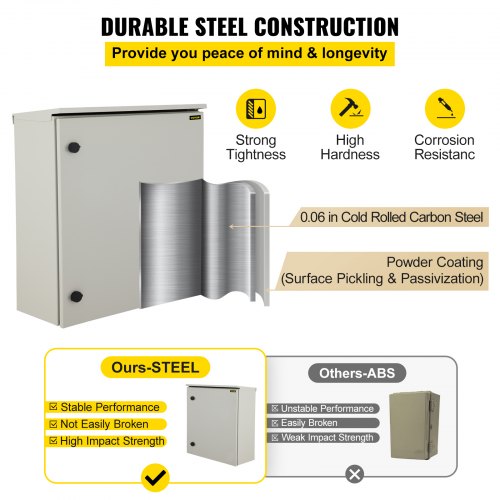

• Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
• Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
• Galvanized Backplate Dimensions(H x W): 22.2 x 22 in / 56.5 x 55 cm
• Model: ST6620

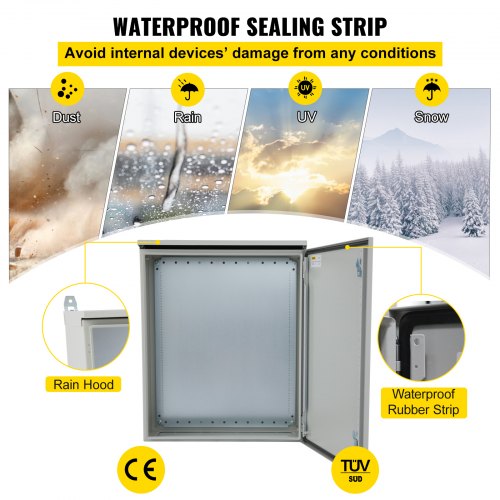

• Gasket Material: Seamless Foam/ Nylon(washer or plug)
• Finish: Powder Coating(Surface Pickling and Passivization)
• Net Weight: 55.56 lbs / 25.2 kg
